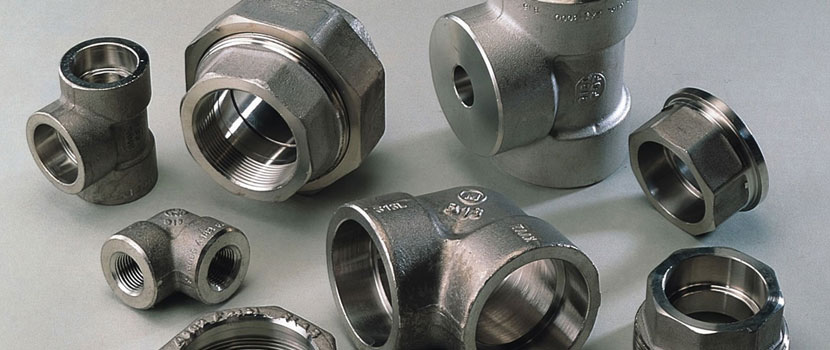

Forged Fittings Manufacturers in India
SS Forged fittings, also known as pipe connectors, attach one pipe to another in order to lengthen the run or change the flow direction in a plumbing system. These fittings are used to combine, divert or reduce the flow of the water supply, and they come in a variety of sizes to fit the pipe they will connect.
We, LS ENGINEERING are manufacturers and stockists of Stainless Steel Forged Fittings, Carbon Steel, Duplex Steel, Alloy Steel, High Nickel Alloy, Inconel, Monel, Alloy 20, Titanium All the necessary tests are done from pre production to post production Material Test Certificates are provided upon demand. These Alloy Forged Fittings is often used at cryogenic temperatures, with excellent toughness to -450 Degree F, and low magnetic permeability.
The stainless steel used in the manufacturing of the SS Forged Threaded Fittings and SS Forged Socket weld Fittings ensures high durability, tensile strength and resistivity to adverse conditions. The Stainless Steel Forged Fittings offered by us are available in varied specifications.
Forged Fittings Specification :
| Dimensions | : | ASME 16.11, MSS SP-79, BS 3799, 83, 95, 97 |
| Type | : | Threaded & Socket weld |
| Size | : | 1/8” NB to 4” NB |
| Form | : | Elbow, 45° Elbow, Full Coupling, Bend, Union, End Cap, 90° Elbow, Coupling, Hex Plus, Bushing, Nipple Fittings, Lateral Tee, BSP Fittings, Round Head Plug, Hex Head Bushing, Square Head Plug, Tee, Plug, Hexagonal Plus, Half Coupling, Cross, Hex Head Plug, etc. |
Forged Fittings Materials and Grades :
Stainless Steel Forged Fittings
ASTM A182, ASME SA182 304, 304L, 310, 316, 316L, 316Ti, 317, 317L, 321, 321H, 347, 347H, 410, 416, 420, 430, 431, 904L
Duplex & Super Duplex Steel Forged Fittings
ASTM A815, ASME SA815 No S31803, S32205. UNS S32750, S32950
Carbon Steel Forged Fittings
ASTM A234, ASME SA234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel Forged Fittings
ASTM A234, ASME SA234 Gr. WP1, WP5, WP9, WP11, WP12, WP22, WP91
Nickel Alloy Forged Fittings
ASTM B336, ASME SB336, Nickel 200, Nickel 201,
Monel 400, Monel K500,
Hastelloy C22, Hastelloy C276, Hastelloy C2000, Hastelloy B,
Inconel 600, inconel 601, Inconel 617, Inconel 625, Inconel 718, Inconel 725, Inconel X-750,
Incoloy 800, Incoloy 800H, Incoloy 800HT, Incoloy 825, Incoloy 926, Incoloy 890, Incoloy 925, Incoloy A286
Titanium Forged Fittings
ASTM B366, ASME SB366 - Grade 2, Grade 5, Grade 7
Copper Nickel Forged Fitting :
ASTM B122, B171, B466, B467 - 90/10 (C70600 ), 70/30 (C71500), UNS C71640
